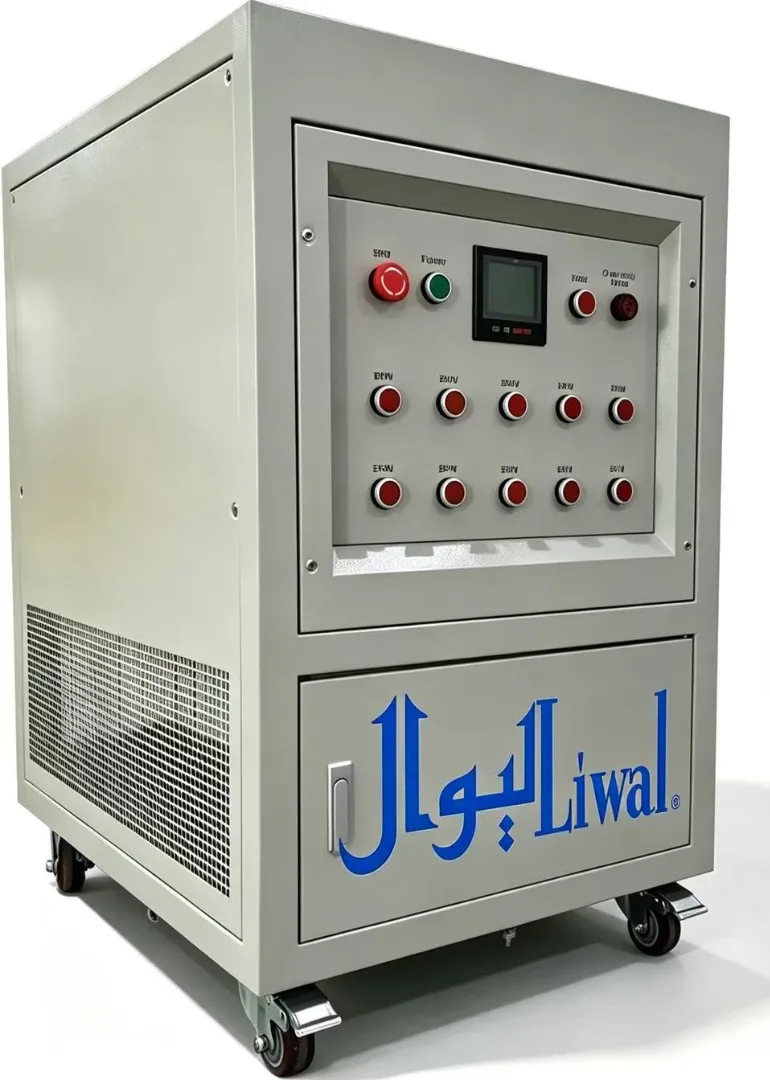

Liwal Standard Portable and Variable AC Load Bank 50KVA



Name: Liwal Standard Portable and Variable AC Load Bank 50KVA
Brand: Liwal
Price: 2750.00 USD
Availability: BackOrder

Copy link Copied

AED 10,099.16 + VAT Each

Brand

Liwal

Brand of

United Arab Emirates

Unit Type

Each

Specification

Load Element

Stainless steel resistors

Brand

Liwal

Load Voltage

AC400V 3 Phase 4 Wire, 50/60Hz

Series

Load Power

50KW for AC400V 3Phase 4Wire, 50/60Hz

Model

AC400V-50KW-LR

Load Steps

1KW, 2KW*2, 5KW, 10KW, 10KW, 20KW (1KW-50KW adjustable @AC400V 3P4W)

Power Factor

PF=1

Load Accuracy

±5%

Dimension (mm)

600*850*900mm

Digital Meter

Voltage, Current, Power, Frequency and etc.

Weight

Around 100KG

Power Supply

230V 50Hz, single phase

Control Mode

Manual control by push button

Wire Connections

Copper bus bar for wire connections

Insulation Class

Protection Level

IP20(indoor use)

Fan Noise

75dB

Cooling Mode

Force-air cooling

Work Mode

Continuous work

Protections

Overheating/buzzer alarm, overheating/over voltage protection, emergency stop button

Ambient Temperature

-10℃～+50℃

Mobility

Four wheels

Humidity

≤95%

Altitude

≤2500 meters
