Liwal IP65

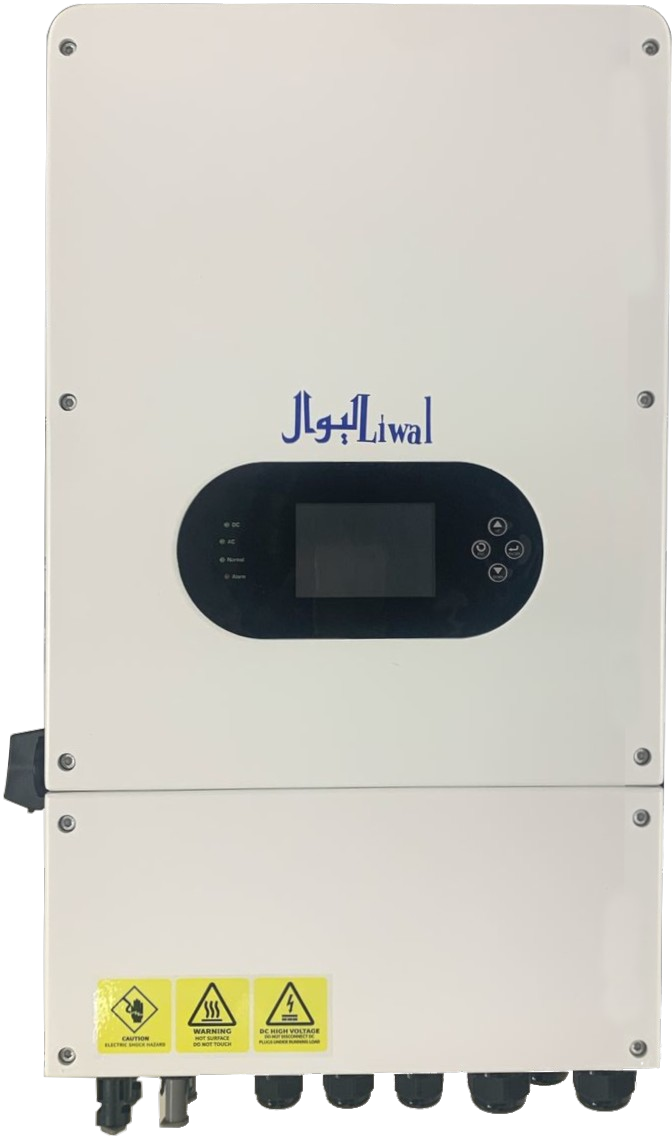

Liwal Hybrid 6KW IP 65 Inverter LHI2-6KS-48P-65

Copy link Copied
This high quality outdoor 6KW inverter supports solar panel, LV battery and DG or grid for max 16 pcs parallel function.
AED 2,900.00
Item condition
New
Unit Type
Each
Availability
In stock 2
Specification
No. of MPPT Trackers
2 Each
Max. DC Input Power
7800
Max. DC Input Current
26+13
Battery Type
Lead-acid or Lithium-ion
Max. Charging Current (A)
135
Communication with BMS
RS485; CAN
Max AC Output Power(W)
6600
AC Output Rated Current
27.5/26.0
Max.Continuous AC Passthrough(A)
40
Max. Efficiency
97.5%
Power Factor
0.8 leading - 0.8 lagging
IP Rating
65
Dimension, D x W x H
238.9mmx330mmx580mm
Net Weight
24 Kg
Warranty
24
Operating Temperature Range (℃)
-40-60℃, >45℃ Derating
Grid Type
Single Phase
Charging Curve
3 Stages / Equalization
Max. DC Short-Circuit Current(A)
44+22
Total Harmonic Distortion (THDi)
less than 3% (of nominal power)
Start-up Voltage
125
External Temperature Sensor
yes
Euro Efficiency
96.4%
Anti-islanding Protection
Yes
Insulation Resistor Detection
Yes
Residual Current Monitoring Unit
Yes
Output Shorted Protection
Yes
Over Voltage Category
DC Type II / AC Type III
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
Operating Temperature
-40-60℃, >45℃ Derating
